| HL63642DG Laser Diode Specification Summary | |
|---|---|
| Part Number | HL63642DG |
| Wavelength | 639 nm |
| Laser Power | 200 mW |
| Package | 5.6 mm |
| Maximum Operating Temperature | -40 to 60 deg. |
| Pin Configuration | N |
| Polarization Ratio | 100:1 |
| Description | Single Mode |

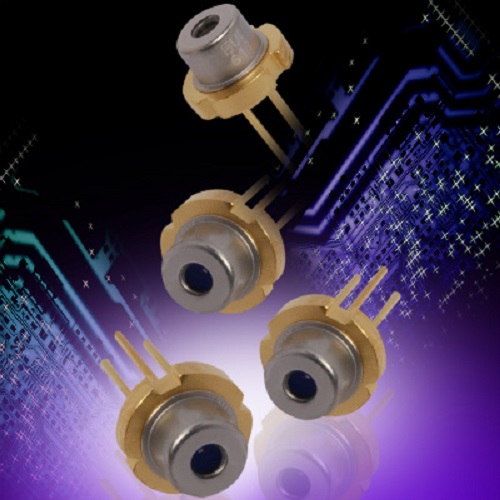

HL63642DG is a high-performance red laser diode developed by Ushio, emitting at a wavelength of 639 nm with an optical output power of 200 mW at 25°C. Encased in a 5.6 mm CAN package, it operates in single transverse mode with TE mode oscillation, offering a wall plug efficiency (WPE) of 33%. This diode is designed for continuous wave (CW) operation and is equipped with a built-in monitor photodiode for precise power monitoring.
