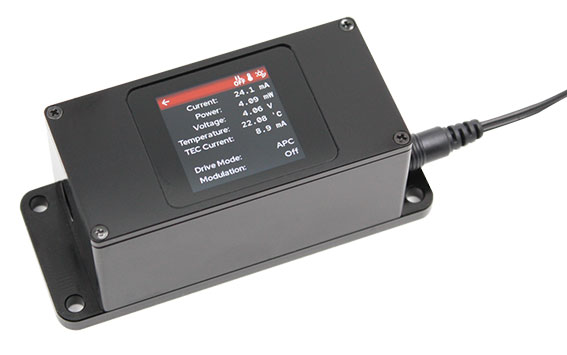

World Star Tech’s line of COMPACT computer-controlled laser systems feature an integrated laser head, control electronics, and user-interface display in a portable, low-profile enclosure.
COMPACT is specifically designed for applications demanding complete control of the laser power, temperature and modulation. Adjust parameters directly on the device itself with the on-board touchscreen or pushbutton interface, or connect it to a computer via RS-232 or USB for remote control.
The COMPACT holds the temperature and power of the laser steady, demonstrating excellent beam quality, power stability and noise. COMPACT allows for variable laser modulation sequences, as well as a power and temperature scanning mode to determine optimal laser parameters low noise operation.
Contact us to learn how COMPACT is right for your optical system!
The video below showcases the COMPACT-TS in action:
| Part Number | Laser power | Wavelength | Lens Type | Modulation | Features | Features |
|---|---|---|---|---|---|---|
| COMPACT - 633 | 75 mW | 633 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT - 635 | 75 mW | 635 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT -830 | 150 mW | 830 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT-450 | 500 mW | 450 nm | Glass Asperical Lens | Yes | Single Mode/Multimode depending on power | |
| COMPACT-488 | 50 mW | 488 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT-520 | 100 mW | 520 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT-658 | 10-500 mW | 658 nm | Glass Asperical Lens | Yes | Single Mode/Multimode depending on power | |
| COMPACT-808 | 500 mW | 808 nm | Glass Asperical Lens | Yes | Single Mode/Multimode depending on power | |
| COMPACT-405 | 500 mW | 405 nm | Glass Asperical Lens | Yes | Single Mode/Multimode depending on laser power | |
| COMPACT-532 | 20 mW | 532 nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT-561 | 40 mW | 561nm | Glass Asperical Lens | Yes | Single Mode | |
| COMPACT-594 | 15 mW | 594 nm | Glass Asperical Lens | No | Single Mode |
