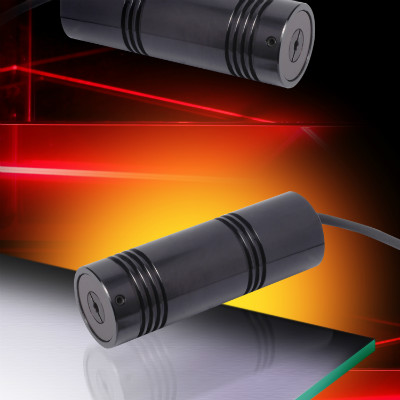

World Star Technologies offers thermoelectrically cooled laser modules from 375 to 980 nm wavelengths (other wavelengths may also be available on request). TEC Laser Modules are fully self-contained with integrated temperature controller (TEC), laser driver circuit, surface polished glass asherical lens optics and a laser diode in a compact package. Precise temperature control with the TEC results in excellent power and wavelength stability, low noise and long lifetime. These lasers have applications in the field of bio-instrumentation. They are also available with additional optics to circularize the beam and pigtailed to a fiber. All TEC lasers includes a wall mount adaptor for plug and play operation.
Features | Applications |
---|---|
Integrated Temperature Controller | Bioanalytical |
Low RMS Noise & High Power Stability | Measurement & Imaging |
Excellent Wavelength Stability | Light Scattering |
Part Number | Laser power | Wavelength | Beem | Modulation |
---|---|---|---|---|
TECIRL-730 | 10 to 30mW | 730 nm | Adjustable Focus | Optional |
TECIRL-808 | 10-400mW | 808 nm | Adjustable Focus | Optional |
TECIRL-850 | 10-200 mW | 850 nm | Adjustable Focus | Optional |
TECRL-633 | 10 to 75 mW | 633nm | Adjustable Focus | Optional |
TECRL-635 | 0.4 to 125 mW | 635 nm | Adjustable Focus | Optional |
TECRL-670 | 0.4 to 10 mW | 670 nm | Adjustable Focus | Optional |
TECBL-405 | 1-150 mW | 405 nm | Collimated | Optional |
TECBL-450 | 10-60 mW | 450 nm | Collimated | Optional |
TECBL-473 | 5-75 mW | 473 nm | Collimated | Optional |
TECBL-488 | 5-40 mW | 488 nm | Collimated | Optional |
TECIRL-705 | 10 to 30 mW | 705 nm | Adjustable Focus | Optional |
TECIRL-780 | 10-100mW | 780 nm | Adjustable Focus | Optional |
TECIRL-830 | 10-150mW | 830 nm | Adjustable Focus | Optional |
TECRL-658 | 10-150mW | 658 nm | Adjustable Focus | Optional |
TECRL-690 | 10 to 25mW | 690 nm | Adjustable Focus | Optional |
