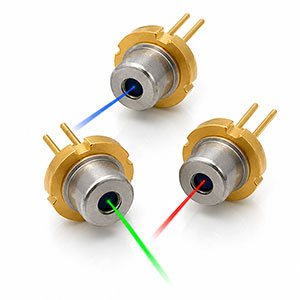

Laser Diodes by Wavelength; World Star Tech maintains a large inventory of measured and wavelength selected laser diodes and offers 405nm, 450nm, 505nm, 514nm, 520nm, 633nm, 635nm, 650nm, 658nm, 670nm, 680nm, 685nm, 690nm, 780nm, 785nm, 830nm, 850nm laser diodes in 5.6mm package. Some laser diodes are available in 3.8 mm package.
The laser diode wavelength selection and characterization of the laser diode are available upon request.
Part Number | Wavelength | Laser power | Package | Max Temperature | Pin configuration | Polarization ratio | Description |
---|---|---|---|---|---|---|---|
HL63163DG | 633 +/-1 nm | 100 mW | 5.6 mm | 50 deg | - | 100:1 | He-Ne Wavelength |
PLT 516 | 516+/-1 | 50 mW | 5.6 mm | 50 deg. | N-Type | 100:1 | Wavelegnth selected PLT5 520 B1B2B3 |
PLT5 514 | 514 +/-1 nm | 50 mW | 5.6 mm | 50 deg. | N-Type | 100:1 | Wavelength Selected PLT5 520 B1B2B3 |
