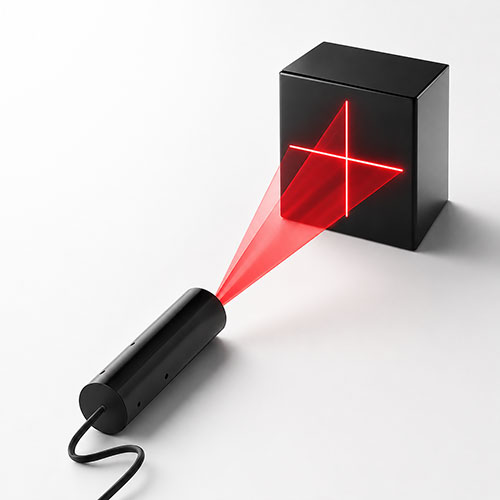

Cross Line Laser Modules (UCL and UCH-Series) are fully self-contained with integrated laser driver circuit, surface polished glass aspherical lens, laser diode and cross-line generator.
Unique properties of Cross Line Laser Modules include a perfectly straight cross, compact anodized aluminum body, fine adjustable focus, clean beam, low divergence, high boresight accuracy and industrial strength. Green Cross Line lasers have very high visibility and are highly recommended for alignment applications.
Our standard cross-line lasers have a fan angle of 25 degree. Cross line lasers with fan angle of 5, 10 and 45 deg are also available. They are available in wavelengths ranging from 440nm to 830nm. Please contact us for any custom requirements.
| Features | Applications |
|---|---|
| Integrated Compact Precision Cross Laser | Measurement |
| High Power Stability | Alignment & Assembly Guide |
| Laser series | Wavelengthsdsdsad | Laser power | Fan angle | Features |
|---|---|---|---|---|
| UCL Series | 635 to 670 nm | 0.4 to 3.5 mW | 25 Deg | Adjustable Focus |
| UCH Series | 515 to 830 nm | 7 to 70 mW | 25 Deg | Adjustable Focus |
