| HL6363MG-A Laser Diode Specification Summary | |
|---|---|
| Part Number | HL6363MG-A |
| Wavelength | 640 nm |
| Laser Power | 45 mW |
| Package | 5.6 mm |
| Maximum Operating Temperature | -10 to 50 deg. |
| Pin Configuration | P |
| Polarization Ratio | 100:1 |
| Description | Single Mode |

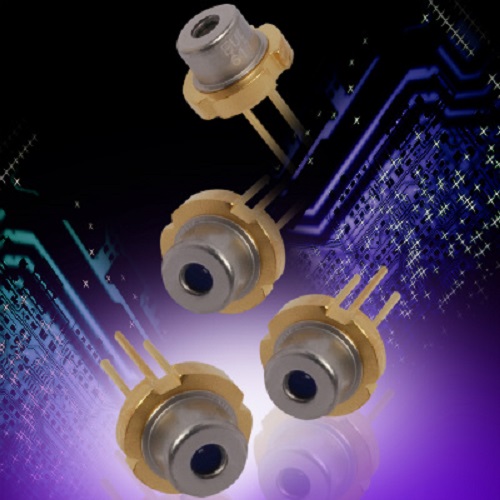

HL6363MG-A is a high-performance red laser diode developed by Ushio. It operates at a wavelength of 640 nm and delivers an optical output power of 40 mW in continuous wave (CW) mode. Housed in a compact 5.6 mm CAN package, this diode features single transverse mode (TE mode) oscillation, ensuring a stable and circular beam profile. Designed for low power consumption, it boasts a typical operating current of 90 mA and a maximum operating voltage of 2.6 V. With an operating temperature range of -10°C to +50°C, the HL6363MG is suitable for various industrial and sensing applications.
