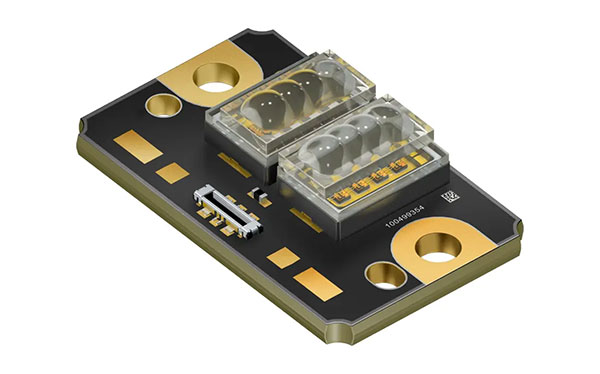

PLPM7 455QA_LL Laser Diode

PLPM7 455OA_LL is a deep blue emitting high power multi-die Edge Emitting Laser including beam collimation for all kind of highest power application requiring phosphor conversion or direct emitting blue laser light emission.

Key Features:

• Wavelength: 455 nm (deep blue)
• Optical Output Power: 42 W (typical)
• Threshold Current: 0.24 to 0.44 A
• Beam Divergence: 0° to 1.6° (parallel), -1.5° to 1.5° (perpendicular)
• Polarization Extinction Ratio: 70:1
• Package Type: Hermetic Multi Laser Die Top Emitter Package
• Dimension: l 30.0 mm; w 25.5 mm; h 4.19 mm
• Operating Temperature Range: 0°C to +70°C​
• Chip Technology: Multimode EEL
• Typical wall plug efficiency of 45 %

Applications:

• Entertainment Systems: Used in laser shows, stage lighting, and special effects requiring high-brightness blue laser light.
• Outdoor & Industrial Lighting: Integrated into high-power illumination systems with phosphor conversion for bright white light generation.
• Projection & Display Systems: Employed in laser projectors and display technologies for vivid, high-resolution image reproduction.
